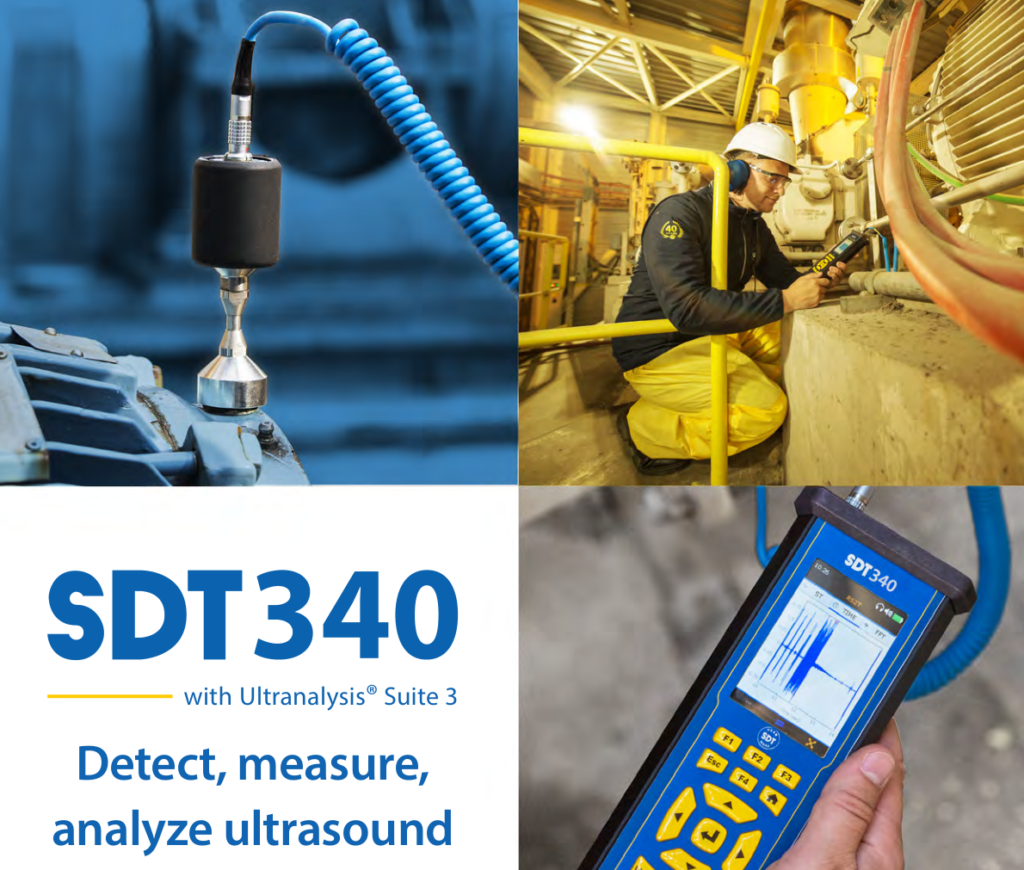

- Detect, measure,
- analyze ultrasound
- and vibration
- with Ultranalysis® Suite 3
- Data Collector
- A condition monitoring solution providing the
- first line of defense for asset reliability.
- APPLICATIONS
- Cut the cord with SDT340’s
- high definition Bluetooth
- headphones.
- The intuitive interface
- to UAS3 allows for data
- collection in “off-route”
- mode.
- MECHANICAL
- LEAKS
- LUBRICATION
- ELECTRICAL
- Record time waveform
- data up to 10 minutes in
- duration with enhanced
- signal data.
- Signal analysis based on
- the four Condition Indica
- tors (RMS, Max RMS, Peak
- Value and Crest Factor).
- Enhance productivity in the
- field with on-screen time
- signal, spectrum, split screen
- view, and icon navigation.
- RMS
- 0.8 dBµV
- Max RMS
- 1.1 dBµV
- Recall historical data for
- trending and alarming
- in-the-field acquisition.
- Experience enhanced
- impact detection with
- focUS Mode up to 256k
- sample rate. See defects
- others simply cannot.
- Pan and expand your time
- signal or spectrum. List the
- highest values to improve
- in-field diagnosis.
- Interoperability of sensors
- such as Ultrasound Contact,
- Ultrasound Airborne,
- Accelerometer, build-in
- Infrared Temperature and
- Tachometer.
- Navigation images added
- to the UAS3 software can be
- viewed on the device.
- UAS3
- Ultranalysis® Suite 3
- Organize thousands of assets
- using a seven-level hierarchical
- tree structure and unlimited
- data folders. Assign surveys and
- collaborate with your mainte
- nance team.
- Dashboards
- A powerful graphical interface
- of summary data and analyti
- cal tools to enhance the user’s
- experience.
- Measurement
- Matrix
- A quick overview on historical
- indicators and alarms summa
- rizing the health status of every
- asset.
- Analytics
- Visualize each asset’s condition with in
- stant Static Trends, Dynamic Time Wave
- forms, and Dynamic Spectrums.
- History
- Browse, load and play-back the
- signal through your previous
- acquisitions.
- Data Management
- Analysis Software
- Inspect, detect, measure, trend and
- analyze asset health. View ultrasound, vibration
- and navigation images directly on SDT340’s display or UAS3.
- Powerful
- Analytical
- Versatile
- VALVES
- STEAM
- HYDRAULICS
- TIGHTNESS
- Manage data and organize team strategy with UAS3, the most flexible,
- complete condition monitoring software solution available.
- SDT provides ultrasound solutions that help our
- customers gain a better understanding about the
- health of their factory. We help them predict failures,
- control energy costs, and improve product quality while
- contributing to the overall reliability of their assets.
- Your SDT Certified Partner
- On-board
- measurements
- Ultrasound, Vibration, Infrared temperature
- and Tachometer.
- Dual Sensor Inputs
- One for ultrasound measurement and one
- for vibration.
- Time signal and
- spectrum
- On-screen time waveform and FFT. Panning
- and zooming for signal navigation. Display of
- the 10 highest values and the 4 CIs.
- Frequency range
- Up to 100 kHz.
- Sampling rate
- 2, 64, 128 and 256 kHz oversampling
- focUS Mode.
- Signal length per
- recording
- 00 seconds (32 kHz sample rate) or
- 50 seconds (128 kHz focUS Mode ).
- Data memory
- .2 GB allowing the storage of 71 minutes of
- signal sampled at 128 kHz or 286 minutes at
- 2 kHz.
- SDT builds rugged solutions that last a lifetime.
- Our after sales support team is here to ensure your ultrasound
- investment continues to function for the long haul.
- Whether it‘s calibrating and updating the firmware of your
- hardware, or administering the latest software updates, you can
- depend on our globally located service centers to keep your SDT
- solution in factory condition.
- SDT products are built to last a lifetime…
- And so is our WARRANTY.
- Ask us about our LIFETIME WARRANTY today.
- Sensitivity
- Class I instrument exceeding ASTM 1002-11 requirements
- for gas leak detection using the appropriate sensor.
- Display
- Full color TFT 3.5” screen 320×480.
- Active area: width 48.96 mm (1.93”) x height 73.44 mm
- (2.89”).
- Bluetooth
- For audio streaming.
- Housing
- Extruded aluminum, shock proof rubber protections.
- Dimensions
- L x W x H 221 x 93.5 x 44 mm.
- (8.7 x 3.7 x 1.7 inches).
- Weight
- 20 g (25.4 oz), including battery.
- Headphone
- Wired headset and wireless Bluetooth headset. The
- SDT340 is compliant to noise exposure health and safety
- requirements when using SDT provided models.
- Warranty
- Lifetime warranty
- Support
- Training
- LIFETIME
- WARRANTY
- Contact sensors
- Vibration sensors
- Non-contact sensors
- Ultrasonic transmitters
- Sensors and Accessories
- SDT Mission
- SDT340 Features and Technical Specifications
