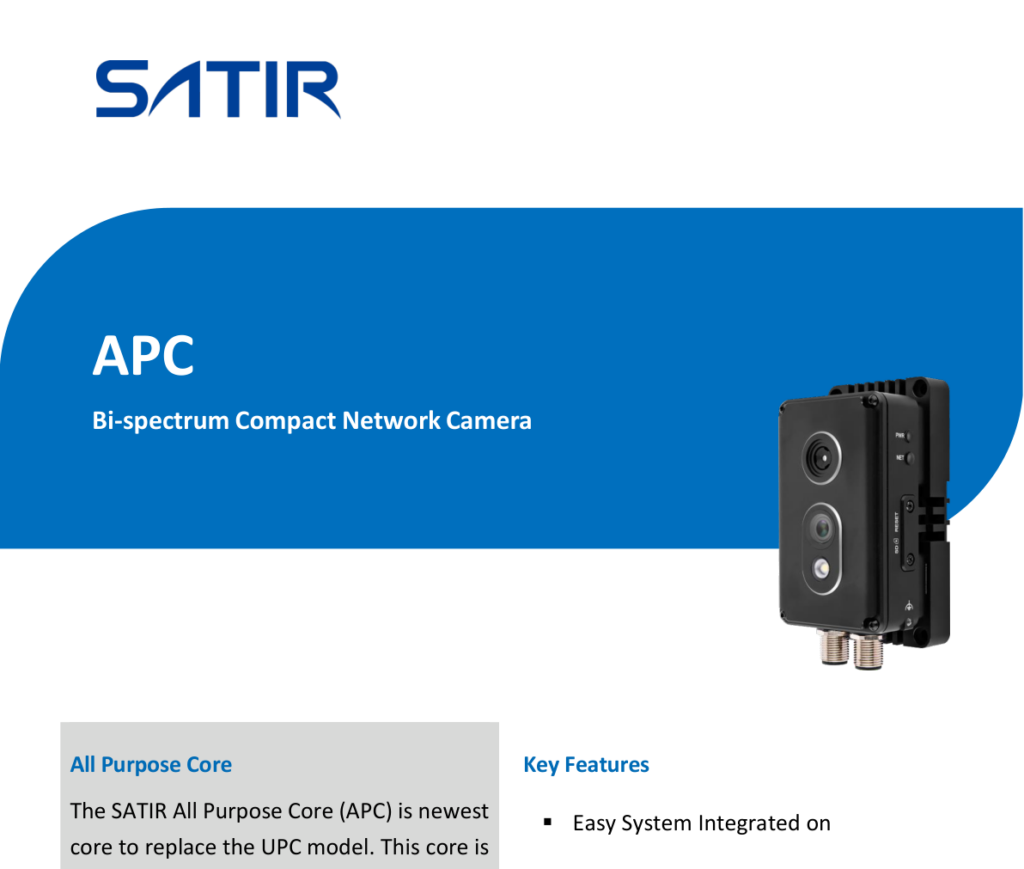

• APC

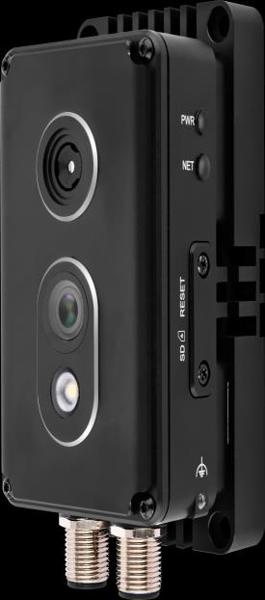

• Bi-spectrum Compact Network Camera
• All Purpose Core
• The SATIR All Purpose Core (APC) is newest
• core to replace the UPC model. This core is
• ideal for monitoring process control in
• areas such as Substati ons, Power Plants
• and Switchgear. It can also be used to
• monitor conveyor belts to check bearings
• as when these are broken they can cause
• fricti on which generates heat, that can be
• detected by the 256×192 IR detector.
• Key Features
• ▪ Easy System Integrated on
• ▪ Compact Size
• ▪ Visual & Thermal Imaging
• ▪ Intelligent Detecti on Functi ons such as
• motion
• ▪ Temperature Alarm
• ▪ ONVIF/SDK/CGI Compati bility
• Thermal Camera
• Image Sensor
• Vanadium Oxide Uncooled Focal Plane Arrays
• Resolution
• 56×192, Image can be scaled up to 704×576
• Pixel Pitch
• 2 μm
• Spectral Range
• μm to 14 μm
• Sensitivity (NETD)
• ≤ 60 mK
• Lens Type
• Fixed, F1.1
• Focus Control
• Free focus
• Focal Length
• mm
• Angle of View
• H: 90°, V: 65°
• Visible Camera
• Image Sensor
• /2.8″ CMOS
• Effective Resolution
• 688(H)×1520(V)
• Shutter Speed
• /5 to 1/20,000s
• Wide Dynamic Range
• True WDR 120dB
• Min. Illumination
• Color: 0.05Lux @(F1.6, AGC ON), B/W: 0.005Lux
• @(F1.6, AGC ON), 0Lux with IR
• S/N Ratio
• More than 55dB
• White Balance
• Auto/Manual
• Focal Length
• .3mm, F2.2
• Angle of View
• H: 100°, V: 75°
• Illuminator
• LEDs
• pcs white light
• Illuminator Distance
• .3m distance: 0.8×0.8m, 1m distance: 1.8×1.2m
• Video and Audio
• Main Stream
• Thermal: D1 (704×576), CIF @25/30fps
• Optical: 2688×1520, 1280×720 @25/30fps
• Sub Stream
• Thermal: CIF @25/30fps
• Optical: D1, VGA, 640×360, CIF, QVGA @25/30fps
• Bit Rate Control
• CBR/VBR
• Bit Rate
• Main Stream: Thermal: 10Kbps to 6Mbps, Optical:
• 00Kbps to 8Mbps
• Sub Stream: Thermal: 10Kbps to 1.5Mbps, Optical:
• 0Kbps to 6Mbps
• Region of Interest
• Off/On (8 Zone, Rectangle)
• Smart Encode
• Support
• Image
• Image Setting
• Brightness, Sharpness, Contrast, Saturation
• Mirror
• Support
• Image Sensor
• /2.8″ CMOS
• Effective Resolution
• 688(H)×1520(V)
• Shutter Speed
• /5 to 1/20,000s
• Wide Dynamic Range
• True WDR 120dB
• Smart Function
• Temperature Detection
• temperature measurement rule types, 20
• rules in total, 1 full screen, 19 others (spot,
• areas, line).
• Temperature Alarm
• Over temperature alarm, Temperature
• difference alarm
• Accuracy
• ±2℃ / ±2%
• Response Time
• ≤ 30ms
• Temperature Range
• 20°C to 550°C
• Temperature Display
• Display in the lower left corner; follow the
• cursor display of the highest temperature,
• lowest temperature or average temperature
• Temperature Measurement
• Distance (0.1×0.1m)
• m
• Network
• Protocols
• IPv4/IPv6, HTTP, RTSP/RTP/RTCP, TCP/UDP,
• DHCP, DNS, PPPOE, SMTP, 802.1x
• Interoperability
• ONVIF
• Max. User Access
• 0 Users
• Web Viewer
• Web Language
• English, Chinese, Polish, Italian, Portuguese,
• Spanish, Russian, French, Czech, Hungarian.
• Default: English
• Interface
• Network Interface
• Ethernet (10/100 Base-T) RJ-45
• Connector
• Alarm Interface
• ch input, 1ch output
• RS-232
• Support
• RS-485
• Support
• Reset Button
• Support
• SD Card Slot
• Support, up to 256GB
• Indicator Light
• Power indicator, Network indicator
• Electrical
• Power Supply
• 0 to 30VDC/PoE (IEEE 802.3af)
• Power Consumption
• Max. 5.4W
• Specification
• Working Temperature
• 30°C to 60°C (-22°F to 140°F)
• Storage Conditions
• Less than 90% RH
• Certifications
• CE /FCC
• Ingress Protection
• IP67
• Casing
• Metal
• Dimensions
• 5× 46 × 118mm (2.17 × 1.81 × 4.65 inch)
• Net Weight
• .52Kg (1.15lb)
• Ordering Information
• Model
• Description
• APC
• Thermal Focal Length: 2.0mm, Optical Focal Length:
• .3mm

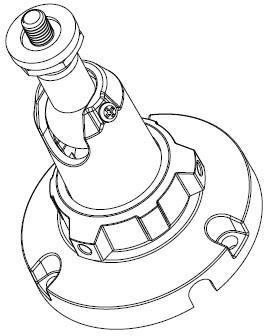

• Accessories

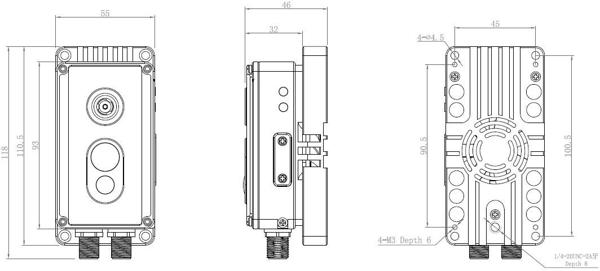

• Dimensions (mm)
• Standard
