- i-640
- Performance Thermal Camera
- Key Features
- ▪ 640 x 480 IR Detector
- ▪ New Fixed Screen Design
- ▪ 4” Touch Screen
- ▪ Android App
- ▪ Laser Pointer
- ▪ Wi-Fi Connectivity
- ▪ 8MP Digital Camera
- ▪ GPS

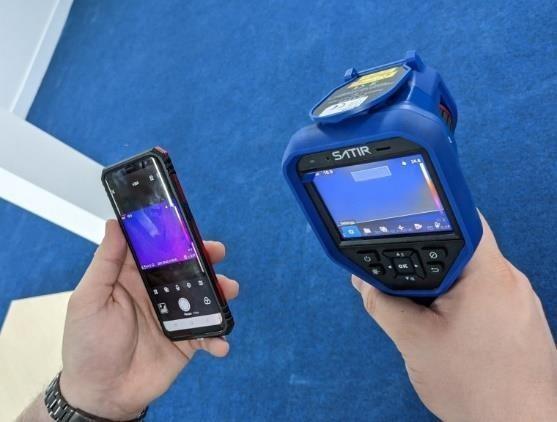

- The i-640 is a handheld thermal camera, which
- comes with an Android App, meaning a second
- person nearby can see what is being surveyed by the
- person operating the thermal camera. This can be

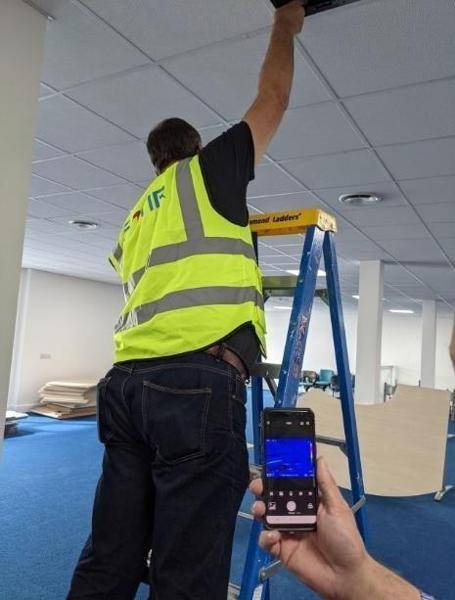

- useful if the area being scanned is a small space such
- as ceiling panels or areas which are restricted to one
- person.
- The i-series cameras have a fixed screen which
- replaces our regular flip screen design of cameras,
- offering the end user a different type of camera
- display. There are 4 imaging modes and 7 colour
- palettes allowing the end-user to select the modes
- most suitable for their surveys. The temperature
- measurement range is -20°C ~ + 650°C Optional
- 500°C with accuracy of ±2°C or ± 2% of readings.
- It comes with a rechargeable battery that can be
- charged using a USB-C which allows for fast charging.
- The i-640 is a very versatile range of handheld
- thermal cameras that be used in a wide range of
- applications from mechanical to electrical & power
- surveying.
- Thermal Camera
- i-640
- Detector Type
- Uncooled microbolometer
- Detector Resolution (pixel)
- 40 x 480
- Super Resolution (pixel)
- 280 x 960
- FOV/Min. Focus Distance
- 4° x 18° / 0.15m
- Thermal Sensitivity (N.E.T.D)
- ≤ 0.05°C @30°C (50mK)
- Spatial Resolution
- .66mrad
- Spectral Range
- .5 ~ 14μm
- Frame Rate
- 5Hz/30Hz
- Focus
- Manual and Automatic/Digital Camera with Auto Focus
- Digital Zoom
- x to 8x. continuous
- Measurement
- Temperature Range
- 20°C ~ + 650°C
- Accuracy
- ±2°C or ± 2% of readings
- Colour Palettes
- Colour Palettes includes: Iron red & Rainbow
- Measurement Tools
- Auto Hot/Cold Spot, Centre Spot, 3 Movable Spots, 3 Area, Line Analysis
- Image Presentation
- LCD Display
- ” 640×480 pixels (VGA) Built in Touch Screen
- Digital Camera
- Mpixel
- Other Presentation
- Fusion, Android App
- Image Mode
- IR/Visual/Fusion/PiP
- Image Storage
- Type
- Removable Memory, SD Card
- Image Format
- JPG with measurement data included infrared-only mode
- Video
- Yes, MP4 (Non-Radiometric Video), RV (Radiometric Video)
- Video Connector
- Display Port Over USB Type-C
- Video Time Lapse
- 0 second to 24 Hour
- Environment Specification
- Operating Temperature Range
- 20°C ~ + 50°C
- Storage Temperature Range
- 20°C ~ + 60°C
- Humidity
- ≤ 95%
- Specification
- Protective Performance
- Encapsulation
- IP54
- Shock
- 5G (IEC 60068-2-27,29)
- Vibration
- .5G
- Physical Characteristics
- Weight
- kg
- Dimensions
- 84.7mm x 120.6mm x 124.5mm
- Power System
- Battery Type
- Removable Li-ion battery
- Charging System
- Two-bay Battery Charge
- Input Power
- 20 VAC, 50 Hz (For battery charging)
- Ports
- Output Ports
- Type USB 2.0, HDMI, Bluetooth, Wifi
- Other Features
- Optional Lens (Self-Calibrated)
- x 5.25° / 5m / 0.21mrad
- 2 x 9° / 1.2m / 0.34mrad
- 8 x 36° / 0.15m / 1.31mrad
- Laser Pointer Distance
- Laser Pointer Distance 10 – 50m
- GPS & Compass
- Yes
- Accessories
- Manual Book, Hard Transport Case, Protective Bag, Software able to download,
- update, and Analysis, Spare Rechargeable Battery, Two-bay Battery charger,
- USB-C cable, HDMI cable, Micro SD Card, USB storage, Bluetooth Headset
- Warranty
- 4 Months
