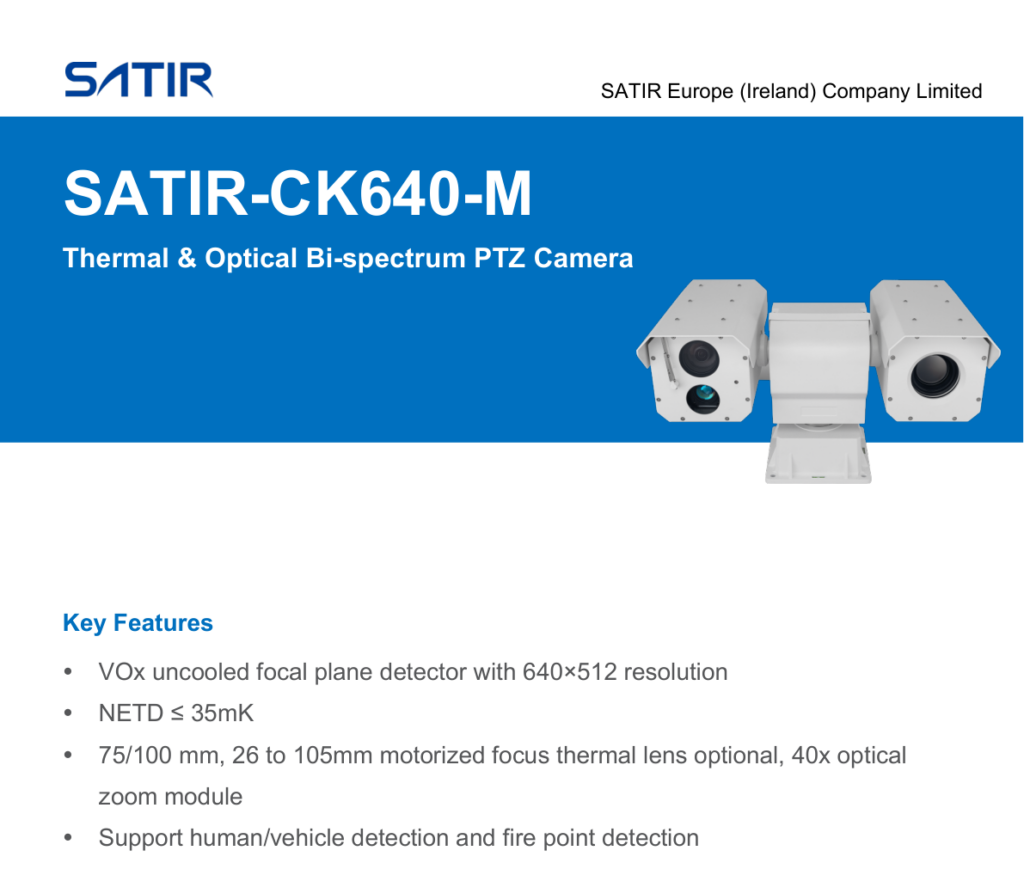

SATIR-CK640-M

• SATIR Europe (Ireland) Company Limited
• Key Features
• VOx uncooled focal plane detector with 640×512 resolution
• NETD ≤35mK
• 5/100 mm, 26 to 105mm motorized focus thermal lens optional, 40x optical
• zoom module
• Support human/vehicle detection and fire point detection
• Smart events: intrusion, single line crossing, double line crossing, loitering,
• wrong way, people counting, enter area, leave area
• Support 3 temperature measurement rule types (point, line, area)
• Support temperature monitoring and abnormity alarm
• Temperature measurement range: -20°C ~ 150°C (-4°F ~ 302°F)
• Power off self-locking, strong wind resistance
• Anti-frozen, IP66
• SATIR-CK640-M
• Thermal & Optical Bi-spectrum PTZ Camera
• SATIR Europe (Ireland) Company Limited
• Thermal Module
• Image Sensor
• Uncooled Focal Plane Arrays
• Resolution
• Sensor is 640×512. Image can be scaled up to
• 280×1024
• Pixel Pitch
• 2µm
• NETD
• ≤35 mK
• Spectral Range
• ~ 14 um
• Image Setting
• Brightness, Sharpness, Contrast, Mirror, FFC control,
• D/3D DNR
• Pseudo-color Setting
• White-hot/Black-hot/Rainbow/Ironbow etc. up to 17
• modes
• Thermal Lens
• Focus Control
• Motorized Focus
• Focal Length
• 5mm
• 00mm
• 6 to 105mm
• Aperture
• F1.0
• F1.0
• F1.6
• Angle of View
• H: 6°, V:5°
• H:4.3°, V:3.5°
• H: 16.8°~ 4.2°, V:
• 3.4° ~ 3.4°
• Detection Distance
• (Fire: 1*1m)
• 125 m
• 167m
• Max 4,375 m
• Detection Distance
• (Humans: 1.8*0.5m)
• 121 m
• 167m
• Max 4,369 m
• Detection Distance
• (Vehicles: 4*1.5m)
• 583 m
• 2778 m
• Max 10,063 m
• Recognition Distance
• (Humans: 1.8*0.5m)
• 80 m
• 040 m
• Max 1,192 m
• Recognition Distance
• (Vehicles: 4*1.5m)
• 396 m
• 194 m
• Max 3,659 m
• Optical Module
• Image Sensor
• /2.8″ Sony CMOS
• Max. Resolution
• 592 (H)×1520 (V), 4MP
• Shutter Speed
• /5 ~ 1/20,000s
• Min. Illumination
• Color: 0.01 Lux @ (F1.2, AGC ON), B/W: 0.001 Lux
• WDR
• True WDR
• Focal Length
• .98 ~ 199.3mm, 40x optical zoom
• Aperture
• F1.2 ~ F3.5
• Angle of View
• H: 59.1° ~ 1.8°, V: 41.6° ~ 1.7°
• Digital Zoom
• 6x
• Focus Control
• Auto/Manual/Semi-automatic
• Mirror
• Support
• Defog
• Support
• Privacy Masking
• Support
• Illumination Distance
• IR distance up to 500m (1,640.4 ft)
• PTZ
• Pan/Tilt Range
• Pan: 0° ~ 360° endless, Tilt: +90° ~ -90°
• Pan/Tilt Speed
• Pan: 0.01° ~ 60°/s, Tilt: 0.01° ~ 30°/s
• Wiper
• Support
• Preset Accuracy
• ± 0.1°
• Presets
• 00
• Scan
• scans, up to 32 presets per scan
• Patrol
• 2 patrols, up to 32 presets per scan
• Track
• tracks
• D Positioning
• Support
• Speed Setup
• Auto/Manual (0-8)
• Power Off Memory
• Support
• Idle Motion
• It can activate Preset/ Scan/Tour/Pattern if there is no
• command in the specified period
• Video and Audio
• Main Stream
• Thermal: 1280×1024, 1280×720, 640×512 @ 25/30fps
• Optical: 2592×1520, 2560×1440, 2304×1296,
• 920×1080, 1280×720 @25/30fps
• Sub Stream
• Thermal: D1, CIF @ 25/30fps
• Optical: D1, VGA, 640×360, CIF, QCIF, QVGA
• @25/30fps
• Bit Rate Control
• CBR/VBR
• Bit Rate
• Thermal: Main stream: 100Kbps~8Mbps
• Sub stream: 100Kbps~6Mbps
• Optical: Main stream: 100Kbps~12Mbps,
• Sub stream: 100Kbps~6Mbps
• Region of Interest
• Off/On (8 Zone, Rectangle)
• Audio Compression
• G711: 8kbps, RAW_PCM: 16kbps
• Smart Function
• Smart Alarm
• Motion detection, Disk alarm, I/O alarm, IVS alarm,
• Temperature detection & alarm
• Smart Detection
• Support human/vehicle detection and fire point
• detection (ship detection optional)
• Intelligent Analysis
• Intrusion, Single line crossing, Double line crossing,
• Loitering, Wrong way, Enter area, Leave area (these 7
• function support accurate detection of people/vehicles) ,
• People counting
• Temperature Detection
• Temperature Detection
• temperature measurement rule types (point, line,
• area)
• Temperature Alarm
• Over temperature alarm, Temperature difference alarm
• Accuracy
• ±2℃/ ±2%
• Response Time
• ≤30ms
• Temperature Range
• 20°C to 150°C (-4°F to 302°F),
• 20℃to 550℃(-4°F to 1022°F) Customizable
• Network
• Protocols
• IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP,
• DNS, PPPOE, SMTP, 802.1x
• Interoperability
• ONVIF, CGI, SDK
• Max. User Access
• 0 Users
• Web Viewer
• Web Language
• English, Chinese, Polish, Italian, Portuguese, Spanish.
• Russian, French, Czech, Hungarian
• Interface
• Network Interface
• Ethernet (10/100 Base-T) RJ-45 Connector
• Audio Interface
• ch Audio In,2ch Audio Out
• Alarm Interface
• ch Alarm In,4ch Alarm Out
• RS485
• Support
• BNC Output
• Support
• Reset Button
• Support (Built-in)
• SD Card Slot
• Built-in, up to 256GB
• General
• Power Supply
• DC36V
• Power Consumption
• Max 150 W
• Working Temperature
• 40°C~60°C (-40°F~140°F)
• Storage Conditions
• ~ 90% RH
• Certifications
• CE /FCC
• Ingress Protection
• IP66
• Casing
• Metal
• Dimensions
• 94×350×337mm (23.39×13.78×13.27”)
• Net Weight
• ≤23Kg
• SATIR Europe (Ireland) Company Limited

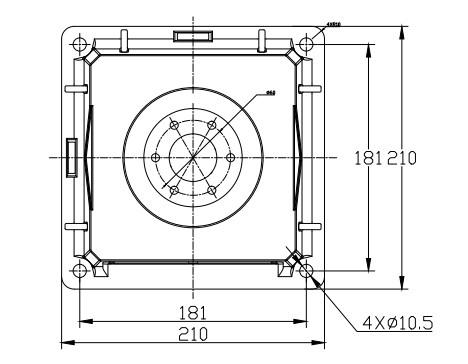

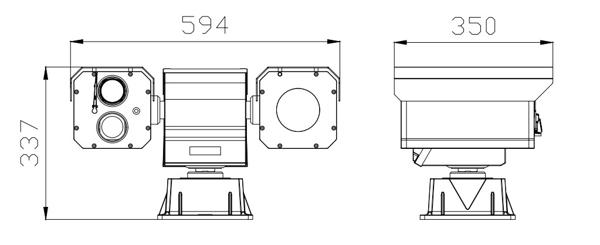

• Dimensions (mm)
