Thermal camera
Detector Type
Detector Resolution
Super Resolution
FOV/Min. Focus Distance
Spatial Resolution
Thermal Sensitivity (N.E.T.D)
Spectral Range
Focus
Digital Zoom
Uncooled microbolometer
640 x 480
1280 x 960
24° x 18° / 0.15m
0.66 mrad
≤0.05°C@30°C (50mK)
7.5 ~ 14 um
Manual and Automatic/Digital Camera with Auto Focus
1x to 8x, Continuous
UFPA
384 x 288
N/A
24° x 18° / 0.15m
1.1 mrad
≤ 0.035°C@30°C (35mK)
7.5 ~ 14 um
Manual
N/A
Model
HotFind-S
HotFind-S Pro

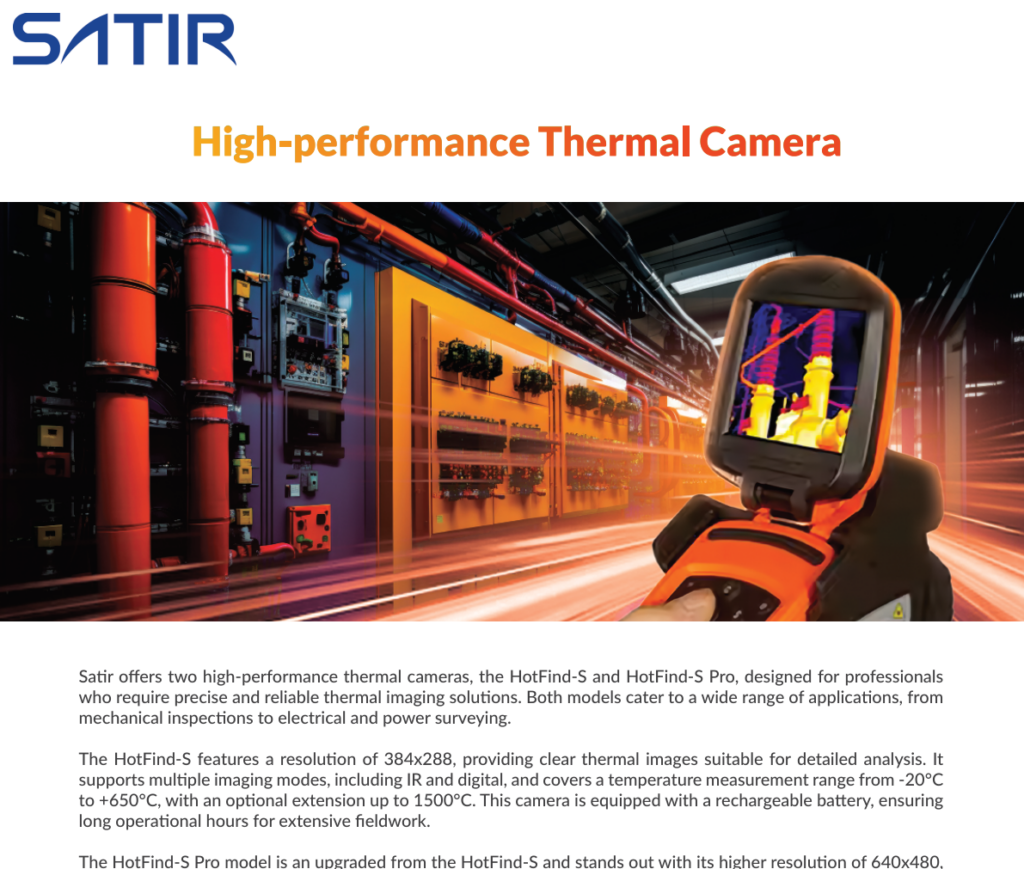

High-performance Thermal Camera
Satir offers two high-performance thermal cameras, the HotFind-S and HotFind-S Pro, designed for professionals
who require precise and reliable thermal imaging solutions. Both models cater to a wide range of applications, from
mechanical inspections to electrical and power surveying.

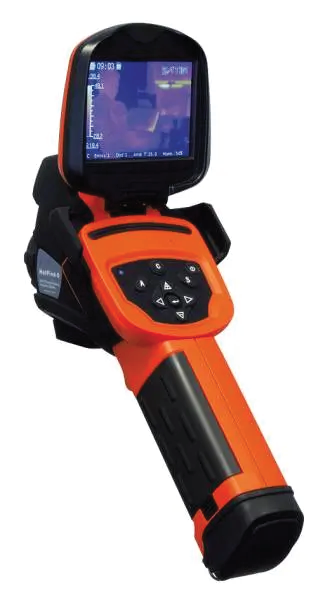

The HotFind-S features a resolution of 384×288, providing clear thermal images suitable for detailed analysis. It
supports multiple imaging modes, including IR and digital, and covers a temperature measurement range from -20°C
to +650°C, with an optional extension up to 1500°C. This camera is equipped with a rechargeable battery, ensuring
long operational hours for extensive fieldwork.
The HotFind-S Pro model is an upgraded from the HotFind-S and stands out with its higher resolution of 640×480,
delivering superior thermal detail. It comes with an Android app for real-time sharing and supports various imaging
modes such as IR, visual, fusion, and picture-in-picture (PiP). The HotFind-S Pro also offers a temperature
measurement range from -20°C to +650°C, optionally up to 1500°C, and features Wi-Fi connectivity, making it
versatile for different professional needs. Its rechargeable battery supports fast charging via USB-C, ensuring the
camera is always ready for action.
Both cameras are designed with durability in mind, featuring protective cases that are shockproof, dustproof, and
waterproof, ensuring reliable performance in harsh environments.
Environment Specification
Pseudo-color
Image Presentation
LCD Display
Visible Pixels
Other Presentation
Image Mode
Image Storage
Type
Image Format
Video Output
Video Connector
Video Time Lapse
Operating Temperature Range
Storage Temperature Range
Humidity
Environment Specification
Encapsulation
Shock
Vibration
Drop Resistance
Physical Characteristics
Weight
Dimensions
Power System
Battery Type
Battery Operating time
Ports
Output Ports
Other Features
Available Optional Lenses
Laser Pointer
Laser Distance
Alarm
Voice and Text Annotation
Tripod Mounting (1/4″_20)
Illuminator
Video Record
Bluetooth
Measurement
Temperature Range
Accuracy
Measurement Mode
-40°C ~ + 650°C (Optional, Up to 1500°C)
±2° or ±2% of readings
Auto Hot/Cold Spot, Centre Spot, 3 Movable Spots, 3 Area, Line Analysis
7 Colour Palettes includes: Iron red & Rainbow
Iron, Iron inverted, Rainbow,Feather, Grey and Grey inverted
8 movable spots, auto hot/cold spot, profile, 2 area boxes, isotherm
4” 640×480 pixels (VGA) Built in Touch Screen
8 Mpixel
Fusion, Android App
IR/Visual/Fusion/PiP
SD Card 32 GB
JPG with measurement data included infrared-only mode
MP4 (Non-Radiometric Video), RV (Radiometric Video)
Display Port Over USB Type-C
10 second to 24 Hour
-20°C to +50°C
-20°C to +60°C
10% to 95%, non-condensing
IP 54
25G
2.5G
1.8m
1 kg
284.7 x 120.6 x 124.5 mm
Removable Li-ion battery
4 hours
Type USB 2.0, HDMI, Bluetooth, Wifi
7° x 5.25°, 14° x 10°, 48° x 36°
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
-20°C ~ + 650°C (Optional, Up to 1500°C)
±2° or ±2% of readings
3.5” Capacitive touch screen
High definition CCD , 5million pixels
No
IR/CCD/Duo-vision/Duo-vision Plus
16GB TF card
.JPG(thermal/Visual)
NTSC (60Hz) or PAL (50Hz) composite video
Analog video output
No
-20°C to +50°C
-40°C to +70°C
10% to 95%, non-condensing
IP 54
25G
2.5G
1.8m
< 800 g
215 × 80 × 219 mm
Rechargeable lithium battery
5 hours
USB port, Analog video output
7° x 5.25°, 12° x 9°, 48° x 36
Yes
No
Yes
Yes
Yes
Yes
Yes
Yes
No
No
Yes
GPS & Compass
Android app
SATIR Report Pro
Kit Contents
Standard
1 x Camera
1 x Lens 24° x 18°
1 x Power Supply
1 x Two-bay Battery Charger
2 x Recharrger Battery
1 x USB-C Cable
1 x HDMI Cable
1 x Micro SD Card
1 x USB storage
1 x Bluetooth Headset
1 x Carrying Case
1 x Camera
1 x Lens 24° x 18°
1 x Power Supply
1 x Battery Charger
2 x Battery Pack
1 x Micro USB cable
1 x Video Cable with BNC
1 x Micro SD card
1 x USB Wristband with Manual and Software
1 x Bluetooth Headset
1 x Carrying Case
Option
Lens 7° x 5.25°
Lens 14° x 10°
Lens 48° x 36°
Lens 7° x 5.25°
Lens 14° x 10°
Lens 48° x 36°
