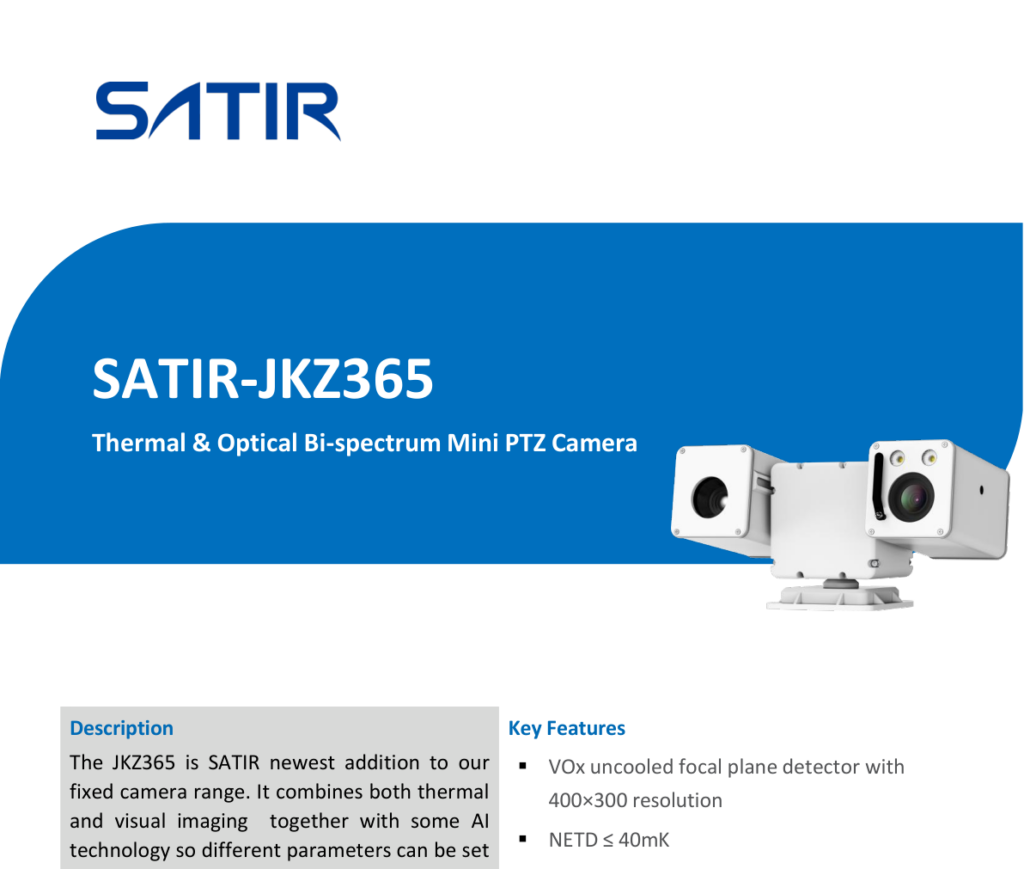

Description
The JKZ365 is SATIR newest addition to our
fixed camera range. It combines both thermal
and visual imaging together with some AI
technology so different parameters can be set
up to activate alarms for over temperature
applications.
Once the alarm has been activated then the
zoom on the digital camera can allow easy
identification of the potential defective
component and corrective action can be
taken.
Using the PTZ will allow the user to monitor a
large area with a single camera and being
ONVIF &CGI compliant means it can be
integrated in to a standard CCTV network or on
a stand alone network.
It also has its own SDK integration kit which
will allow the end user to bespoke some
requirement if required.
Key Features
▪ VOx uncooled focal plane detector with
400×300 resolution
▪ NETD ≤ 40mK
▪ 8/15/25mm thermal lens optical, 30x optical
zoom module
▪ Support human/vehicle detection
▪ Support smoke & fire detection and fire
point detection
▪ Smart events: intrusion, single line crossing,
double line crossing, loitering, wrong-way,
people counting, enter area, leave area
▪ Support 3 temperature measurement rule
types (spot, line, area)
▪ Temperature measurement range: -20°C to
150°C (-4°F to 302°F)
▪ NDAA Compliance, IP66
SATIR-JKZ365
Thermal & Optical Bi-spectrum Mini PTZ Camera
Thermal Lens
Focus Control
Manual Focus
Motorized Focus
Focal Length
8mm
15mm
25mm
25mm
Aperture
F1.0
F1.0
F1.0
F1.0
Angle of View
H: 46°, V: 35.3°
H: 25.5°, V: 19.2°
H: 15.4°, V: 11.6°
H: 15.4°, V: 11.6°
Detection Distance (Fire:
1×1m)
235 m (771ft)
441 m (1,446.9ft)
735 m (2,411.4ft)
735 m (2,411.4ft)
Detection Distance
(Human: 1.8×0.5m)
235 m (771ft)
441 m (1,446.9ft)
735 m (2,411.4ft)
735 m (2,411.4ft)
Detection Distance
(Vehicle: 4×1.5m)
722 m (2,368.8ft)
1353 m (4,439ft)
2,255 m (7,398.3ft)
2,255 m (7,398.3ft)
Recognition Distance
(Human: 1.8×0.5m)
59 m (193.6ft)
110 m (360.9ft)
184 m (603.7ft)
184 m (603.7ft)
Recognition Distance
(Vehicle: 4×1.5m)
180 m (590.6ft)
338 m (1,108.9ft)
564 m (1,850.4ft)
564 m (1,850.4ft)
Note: The detection ranges are calculated with Johnson’s criteria and vary in different weather conditions.
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
Thermal Module
Image Sensor
Uncooled VOx Focal Plane Arrays
Resolution
Sensor is 400×300. Image can be scaled up to
704×576
Pixel Pitch
17 μm
Spectral Range
8 μm to 14 μm
Sensitivity (NETD)
≤ 40 mK
Image Setting
Brightness, Sharpness, Contrast, Mirror, FFC control,
2D/3D DNR
Pseudo-color Setting
White-hot/Black-hot/Rainbow/Ironbow etc. up to 17
modes
Optical Module
Image Sensor
1/2.8″ CMOS
Effective Resolution
2592 (H)×1520 (V), 4MP
Shutter Speed
1/5 to 1/20,000s
Wide Dynamic Range
True WDR
Min. Illumination
Color: 0.07 Lux @ (F1.6, AGC ON), B/W: 0.007 Lux
(F1.6, AGC ON),, 0 Lux with light
Focal Length
5.3 to 139 mm, 30x optical zoom
Aperture
F1.6 to F4.3
Angle of View
H: 55.6° to 2.5°, V: 34° to 1.9°
Digital Zoom
16x
Focus Control
Auto/Manual/Semi-automatic
Mirror
Support
Defog
Support
Privacy Masking
Support
PTZ
Pan/Tilt Range
Pan: 0° to 360° endless, Tilt: +90° to -90°
Pan/Tilt Speed
Pan: 0.01° to 30°/s, Tilt: 0.01° to 10°/s
Wiper
Support
Preset Accuracy
± 0.1°
Presets
400
Scan
8 scans
Patrol
12 patrols, up to 32 presets per patrol
Track
6 tracks
3D Positioning
Support
Speed Setup
Auto/Manual (0-8)
Power Off Memory
Support
Idle Motion
The time can be set (1-240 minutes), and
functions such as preset positions, patrols,
scans, and tracks can be run.
Illuminator
Illuminator Type
White light
Illumination Distance
Up to 30m (98.4ft)
Video and Audio
Main Stream
Thermal: 704×576 @ 25/30fps
Optical: 2592×1520, 2560×1440,
2304×1296, 1920×1080, 1280×720
@25/30fps
Sub Stream
Thermal: CIF @ 25/30fps
Optical: D1, VGA, CIF @25/30fps
Bit Rate
CBR/VBR
Specification
Bit Rate
Thermal: 100Kbps to 6Mbps
Optical: Main stream: 200Kbps to 12Mbps,
Sub stream: 100Kbps to 6Mbps
Region of Interest
Off/On (8 Zone, Rectangle)
Audio Compression
G711: 64kbps, RAW_PCM: 128kbps
Smart Function
Smart Alarm
Motion detection, Disk alarm, I/O alarm, IVS alarm,
Temperature detection & alarm
Smart Detection
Support human/vehicle detection, fire point
detection and smoke & fire detection
Intelligent Analysis
Intrusion, Single line crossing, Double line crossing,
Loitering, Wrong-way, Enter area, Leave area and
Smart motion detection (these functions support
accurate detection of human/vehicles), People
counting
Temperature Detection
Temperature Alarm
Over temperature alarm, Temperature difference
alarm
Accuracy
±2℃ / ±2%
Response Time
≤ 30ms
Temperature Range
-20°C to 150°C (-4°F to 302°F)
Network
Protocols
IPv4/IPv6, HTTP, HTTPS, RTSP/RTP/RTCP, TCP/UDP,
DHCP, DNS, DDNS, PPPOE, FT, SMTP, 802.1x, SNMP
Interoperability
ONVIF, CGI, SDK
Max. User Access
10 Users
Web Viewer
English, Chinese, Polish, Italian,
Portuguese, Spanish, Russian, French,
Czech, Hungarian
Interface
Network Interface
2 Ethernet (10/100 Base-T) RJ-45 Connector
Audio Interface
1ch Audio In, 1ch Audio Out
Alarm Interface
1ch Alarm Out
RS485
Support
Reset Button
Support (Built-in)
SD Card Slot
Built-in, up to 256GB
General
Power Supply
DC24V
Power Consumption
Max 55W
Working Temperature
-30°C to 60°C (-22°F to 140°F)
Storage Conditions
0 to 90% RH
Certifications
CE /FCC
Ingress Protection
IP66
Casing
Metal
Dimensions
323 ×192.5 ×177mm (12.7 × 7.58 × 6.97 inch)
Net Weight
5Kg (11.0lb)

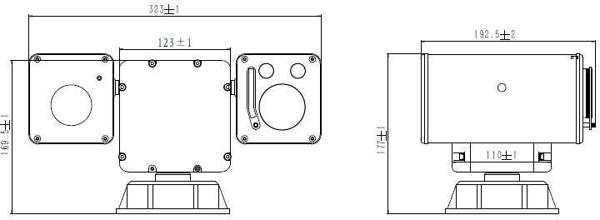

Dimensions (mm)

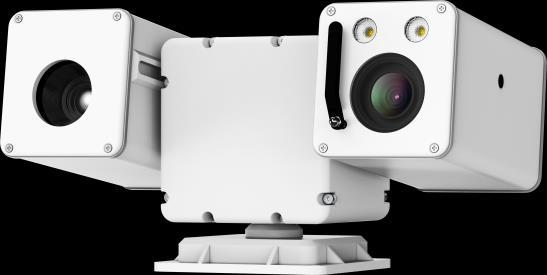

Product Gallery
